We have focused this week on important architectural improvements and clarifications, and pushing toward a refined solution by working on new agents and support tooling.
1. Architecture

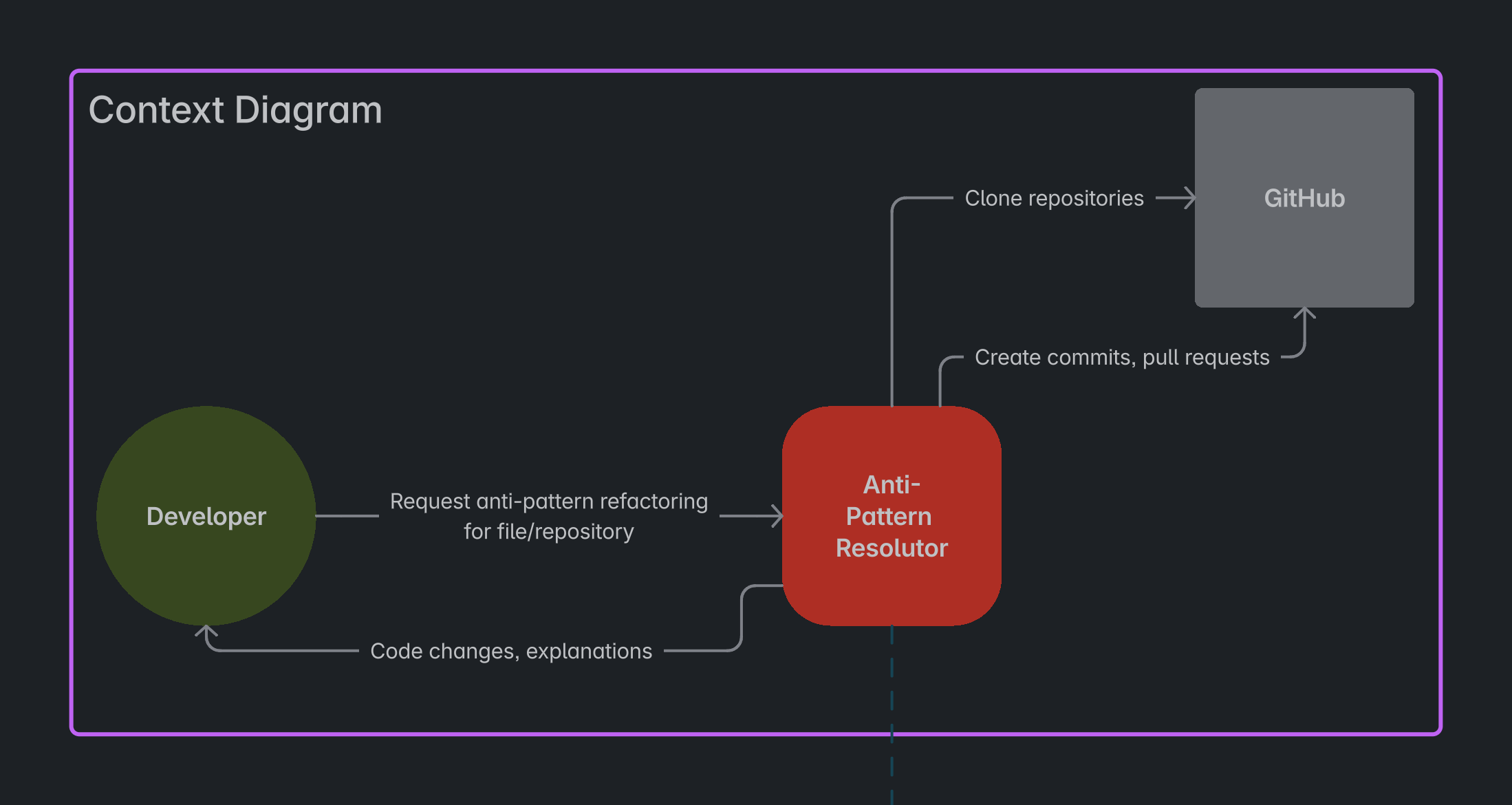

Context Diagram

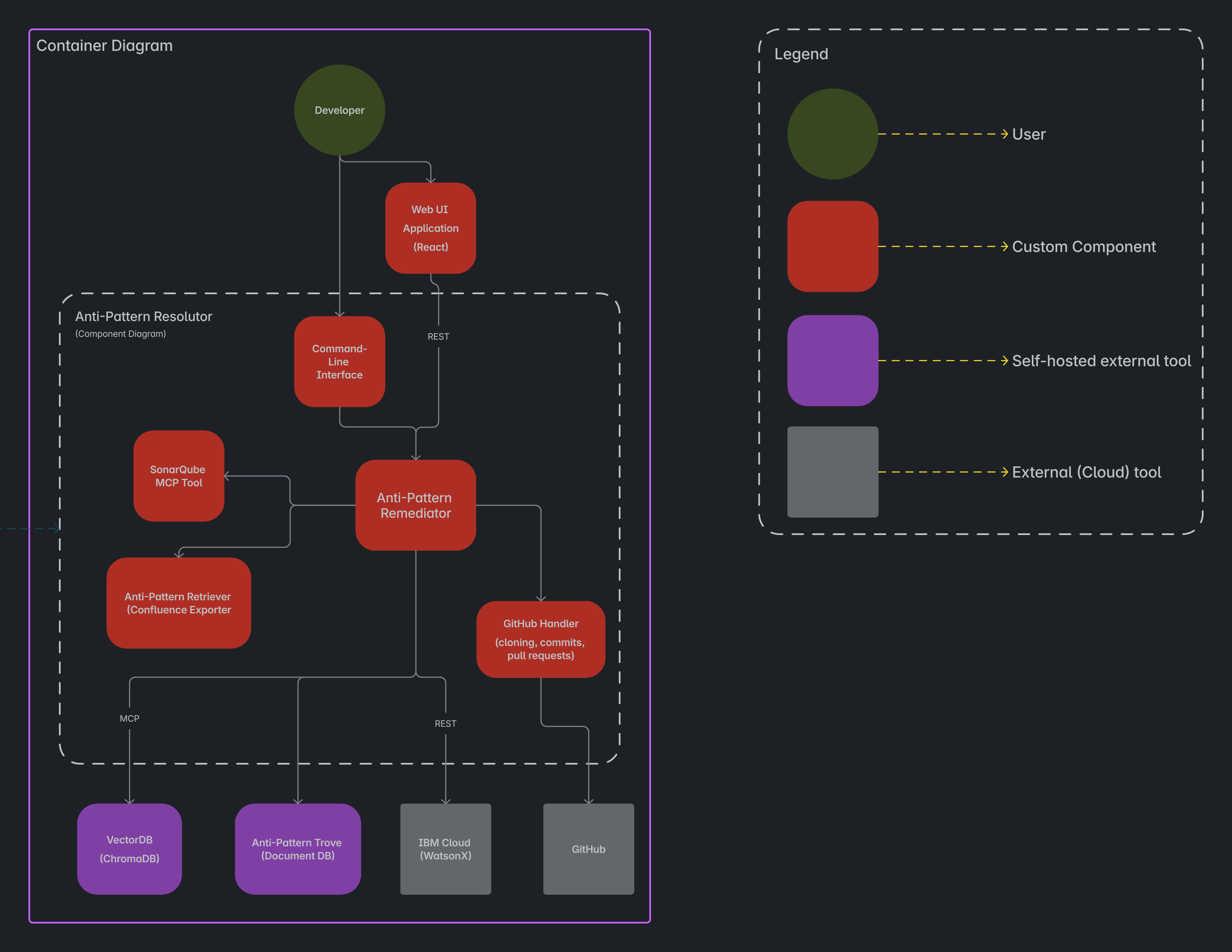

Container & Component Diagram
Our architecture has become clearer in our mind. Our project’s official title is now Anti-Pattern Resolutor, and comprises multiple projects:
- Anti-Pattern Remediator - The main component of the Resolutor, this is project contains the Agentic Workflow that performs the scanning, strategising, and refactoring of code snippets and repositories.
- Web UI Application (React) - Deployed separately but part of the same solution, our React front-end will be one of two ways of interacting with the system, and is defined as an easy-to-use, accessible entrypoint for developers.
- Command-Line Interface - Secondary front-end linked to the other tools in the Resolutor, particularly useful for CLI-savvy developers and potential automation through integration within command pipelines.
- SonarQube MCP Tool - Static analysis tool used by the Remediator (particularly the Pattern Scanner Agent) to extract anti-patterns/code smells more efficiently than AI. This information is then updated by the Pattern Scanner with anti-patterns undiscoverable by static analysis.
- Anti-Pattern Retriever - Tool to export anti-patterns from Confluence (Confluence -> Markdown -> JSON), to then be seeded into our Anti-Pattern Trove. This allows us to have a single source of truth (Confluence wiki) so that documentation can also serve as an important datapoint.
- GitHub Handler - Tool that connects to GitHub. Required for cloning repositories (useful for static analysis & full repository refactoring) and creating commits and pull requests automatically.
Additionally, we have tools that we’re hosting outside of our Resolutor solution:
- Anti-Pattern Trove - Potentially a Document DB (still WIP), it contains the JSONs of all of our anti-patterns, and the express intent is to feed the information to the Pattern Scanner, Refactoring Strategist, and Explainer agents to improve their output.
- VectorDB - A vector database to be used in conjunction with our agents for remembering past information.
2. New Agent: Code Reviewer

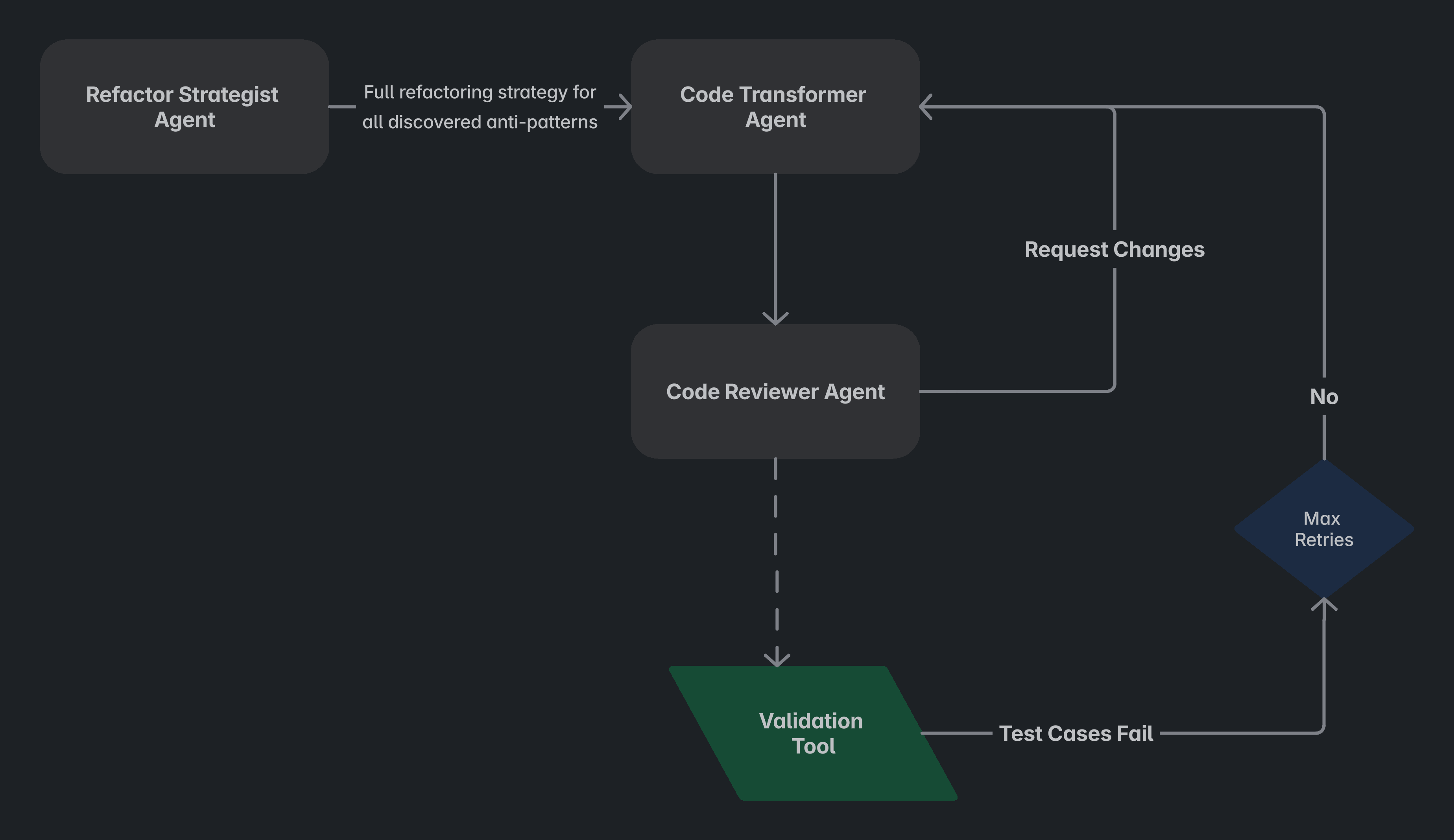

Maoqin had the excellent idea of improving our code transformation by adding a new agent to allow for iterative development. This way, the Code Transformer and Code Reviewer agents work together to improve the code output:
You can find the updated Agentic Workflow here.
TL;DR
A week full of productivity. We’ve focused on:
- Architectural definition and clarity, with C4 (except it’s 3) diagrams.
- Improvements to our agentic workflow through the addition of the brand new Code Reviewer agent.
- Partial implementation of code elements, including the React front-end, AI agents, and the Anti-Pattern Retriever.
